Unaccountable Sardar Sarovar operators again bring avoidable floods in downstream Gujarat

Late, lethargic and unaccountable actions of Sardar Sarovar Project (SSP) Dam operators have once again contributed to huge and largely avoidable downstream floods in Gujarat. The water level at Golden Bridge in Bharuch is approaching HFL (Highest Flood Level) today on Sept 17, 2023, but these floods could have been significantly lower and much less disastrous both for SSP upstream and downstream areas if SSP authorities had taken action earlier based on actionable information available and based on sound reservoir operation principles of following a rule curve.

In fact the rainfall that brought these floods to SSP started on Sept 14 in districts like Khargone (40.9 mm), Mandla (69.2 mm), Narsimhpura (50 mm), Seoni (137.9 mm), Balaghat (149.6 mm), Harda (23.6 mm), Jabalpur (30.6 mm) and Khandwa (27.6 mm) as reported by IMD (India Meteorology Department) for the district wise rainfall reported for the 24 hrs ending at 0830 hours on Sept 15, 2023. If SSP authorities and CWC (Central Water Commission) had started inflow forecasts based on the hourly catchment area rainfall figures they would be getting, they could have started increases the downstream releases from SSP on Sept 14 itself, considering these figures.

The district wise rainfall reported by IMD for the 24 hrs ending at 0830 hrs on 16 Sept 2023 was much higher: Khargone (144.6 mm), Alirajpur (108.2 mm), Dewas (149.7 mm), Dhar (80.4 mm), Harda (205.2 mm), Jhabua (92.4 mm), Khandwa (147.6 mm) and Narmadapuram (131.7 mm), among others. Since CWC and SSP authorities get hourly updates on rainfall in the catchment, they could have started inflow forecasting and increased releases within the carrying capacity of the downstream river even before IMD reported these 24 hrs figures at 0830 hrs.

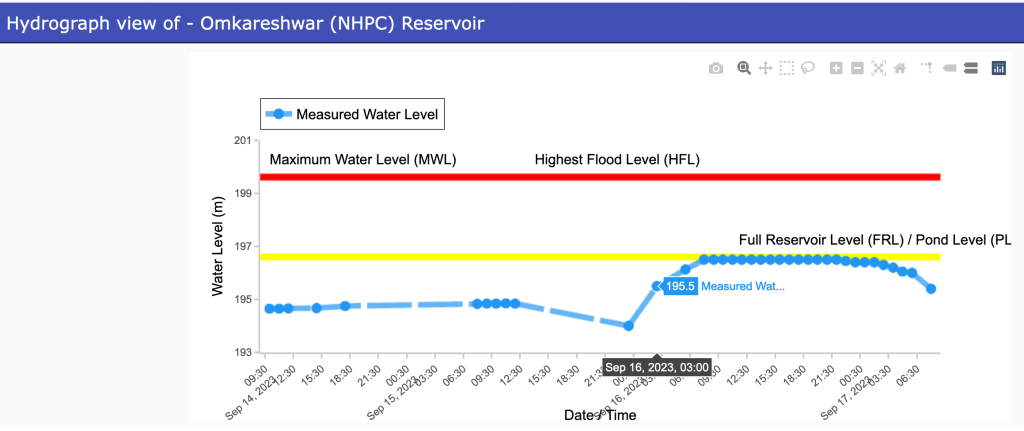

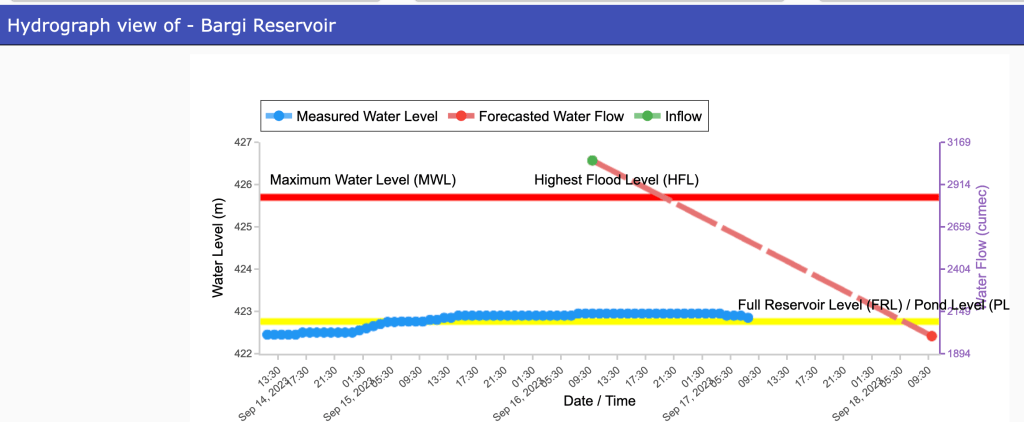

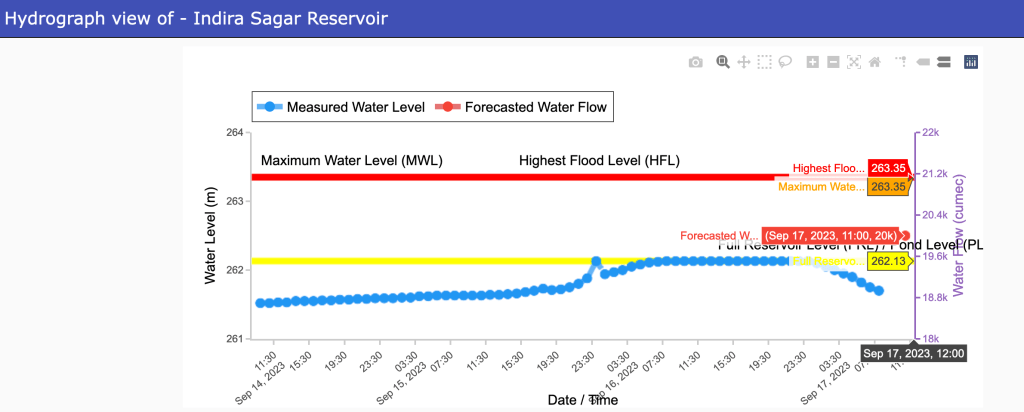

The gates of the Bargi dam on Narmada were already opened on 14^th Sept. By the late evening hours on Sept 15, the levels of both Indira Sagar and Omkareshwar dam on Narmada had started going up, as reported by CWC.

Both Omkareshwar and Indira Sagar dams were close to their FRL (Full Reservoir Levels) by the late hours on Sept 15, Bargi had already reached FRL much earlier. All these high levels were also clearly in violation of the rule curves. This was yet another indication for SSP authorities to start opening gates of SSP on Sept 14 and 15 as the water released from these upstream dams were bound to come to SSP.

However, till 10 am on Sept 16, shockingly, SSP authorities had still not opened any of the gates, the releases were only from River Bed Power House (RBPH) and Canal Head Power House (CHPH), amounting to total of less than 400 cumecs (Cubic Meters per Second). They started releases only after that, rising to 1600 cumecs by 1200 hrs and 11500 cumecs by 1500 hrs.

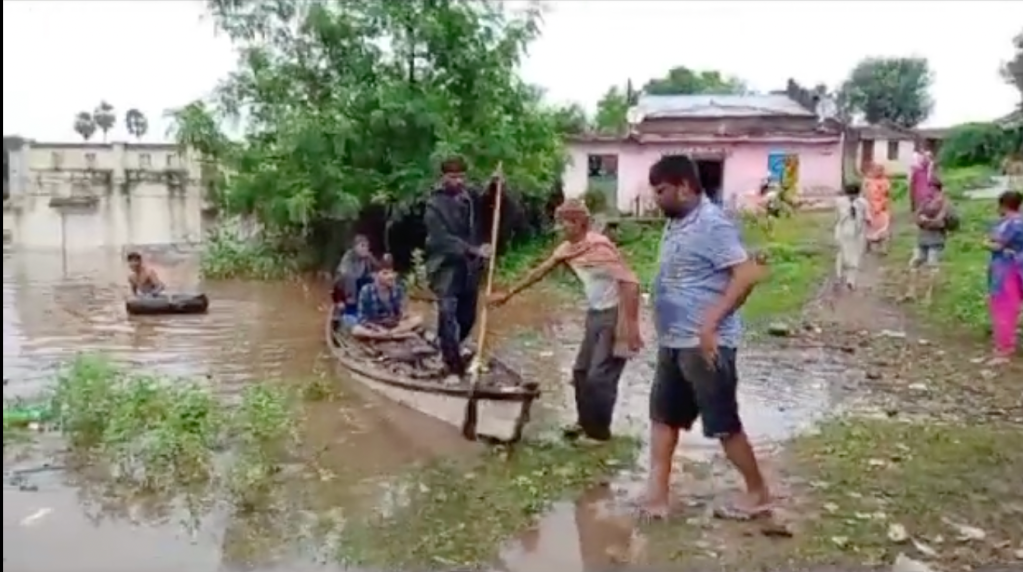

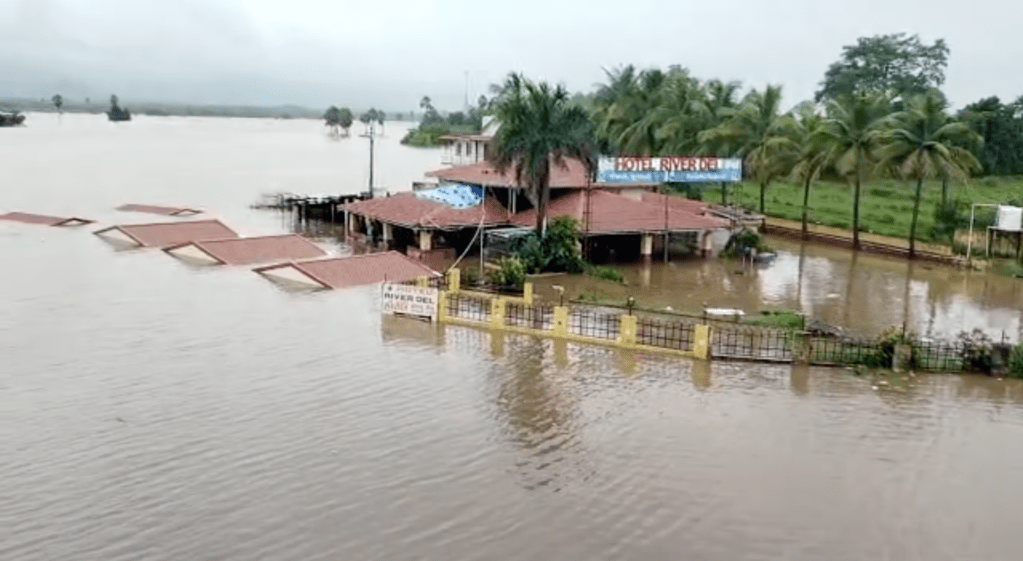

This period of almost 48 to 72 hours of inaction, when there was sufficient actionable information available to CWC and SSNNL (Sardar Sarovar Narmada Nigam Limited, who owns and operates SSP) to start water releases from SSP to the downstream river, lead to the SSP authorities having to release upto 52706 cumecs (18.76 lakh cusecs) by 0500 hrs on Sept 17 and then maintaining at around that high level for several hours thereafter. These flows were certainly way beyond the carrying capacity of the Narmada river downstream of the dam, affecting tens of thousands of people and families. Similarly this lead to massive backwater impacts in the upstream of the dam.

Starting early hours on Sept 16, there were almost a dozen sites in the Narmada valley on CWC flood forecasting monitoring, where the water level had already breached the previous Highest Flood Levels (HFL), some of these were:

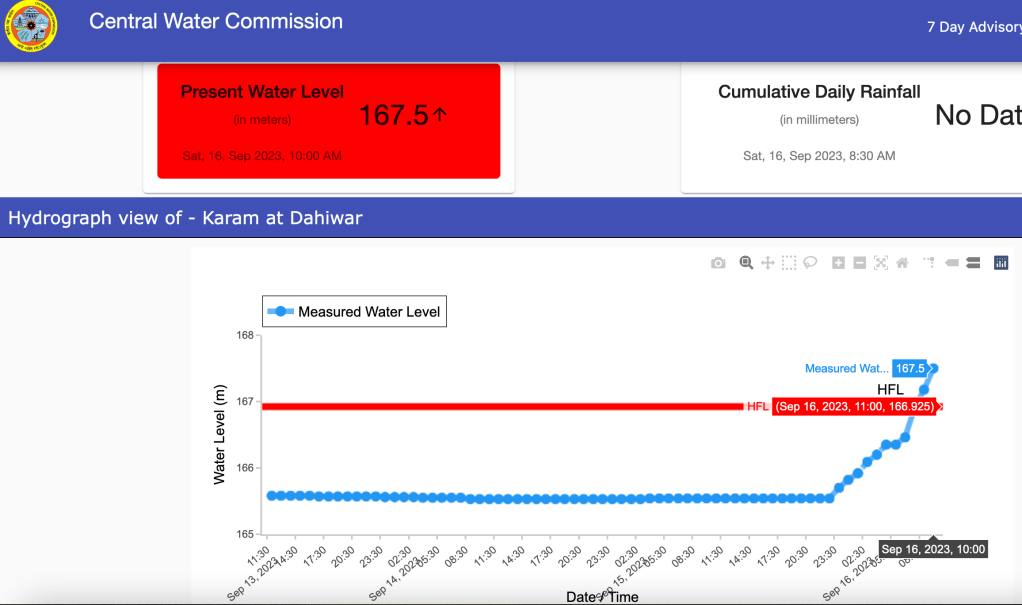

1. Karam at Dahiwar in Dhar District;

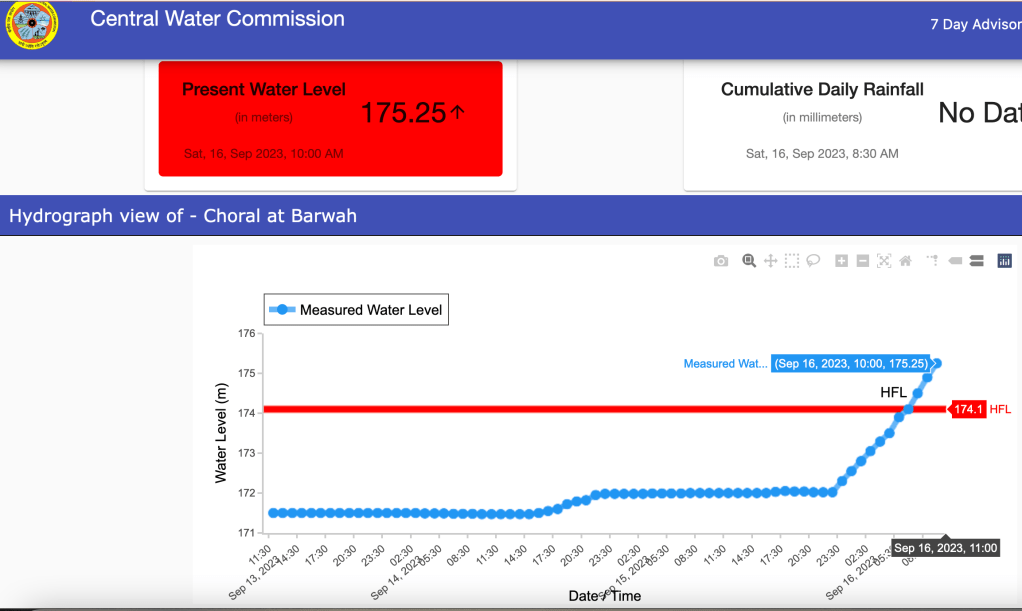

2. Choral at Barwah in Khargone dist;

3. Datuni at Dudwas in Dewas Dist;

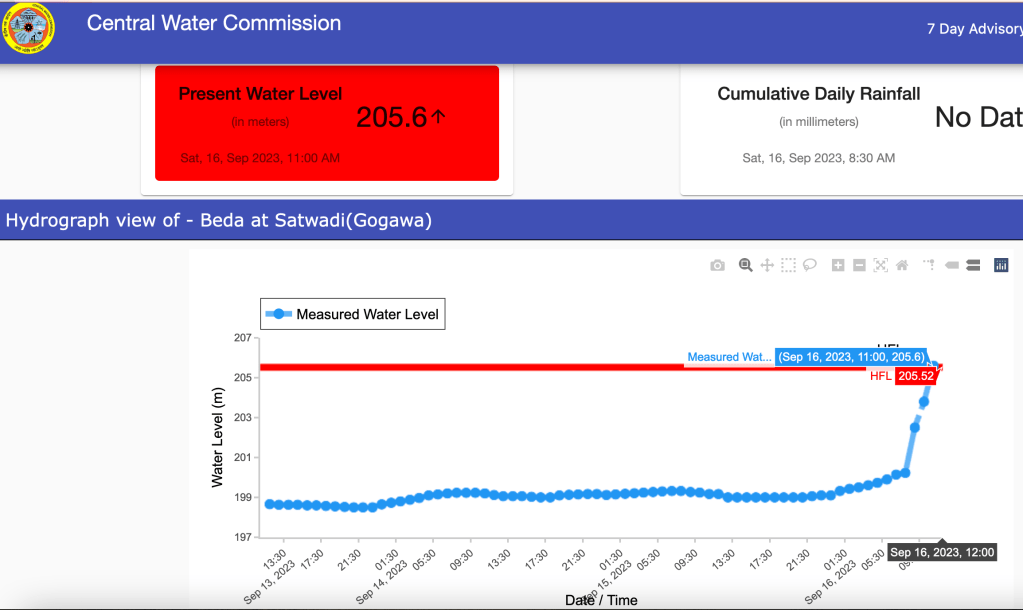

4. Beda at Satwadi (Gogawa) in Khargone Dist;

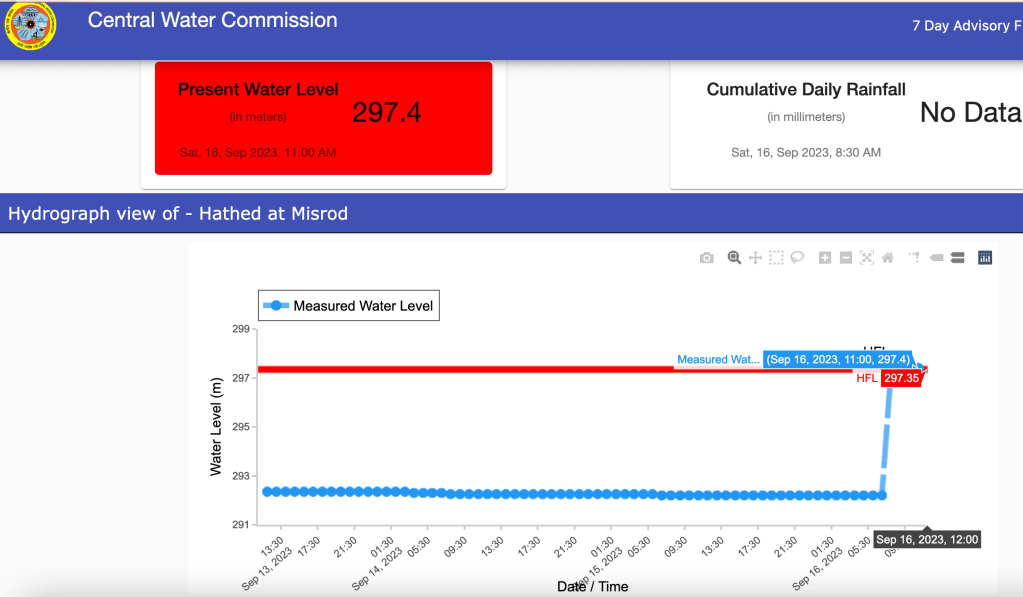

5. Hathed at Misrod in Hoshangabad Dist;

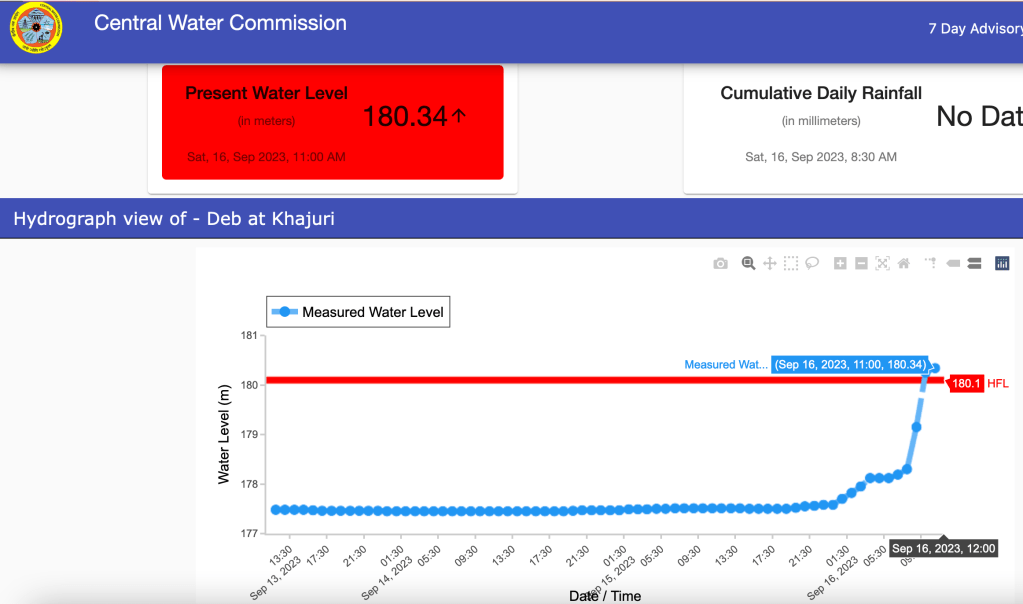

6. Deb at Khajuri in Badwani DIst;

7. Kalimachak at Charuwa in Harda Dist;

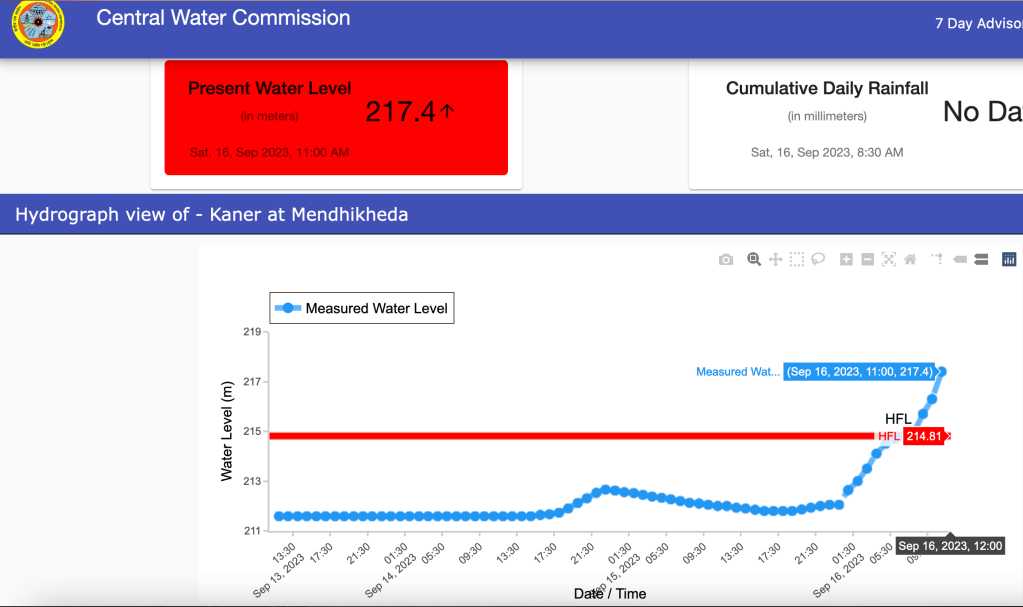

8. Kaner at Mendhikheda in Khargone Dist;

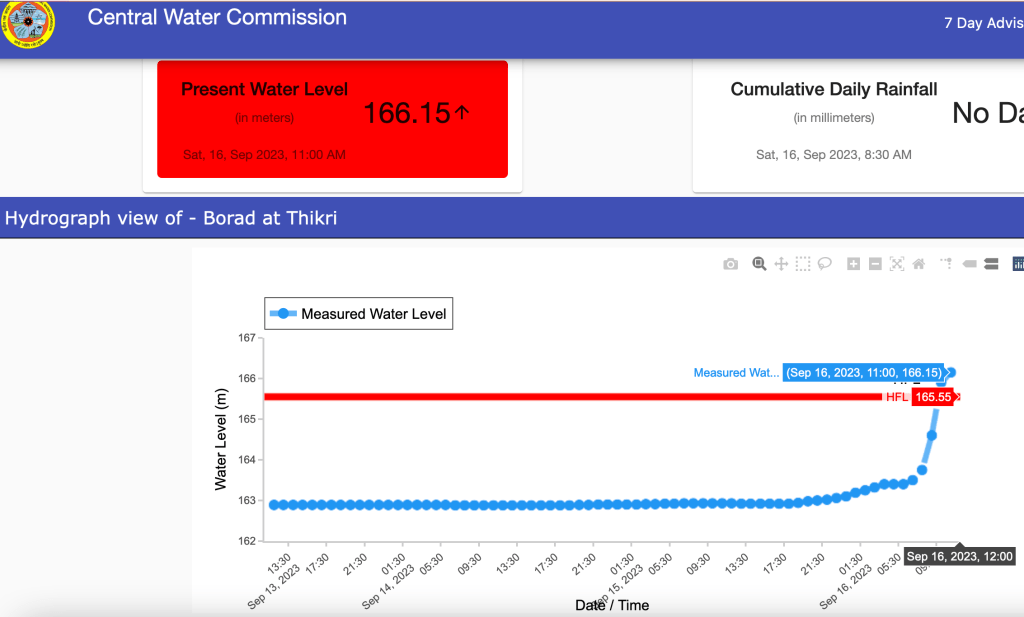

9. Borad at Thikri in Badwani Dist:

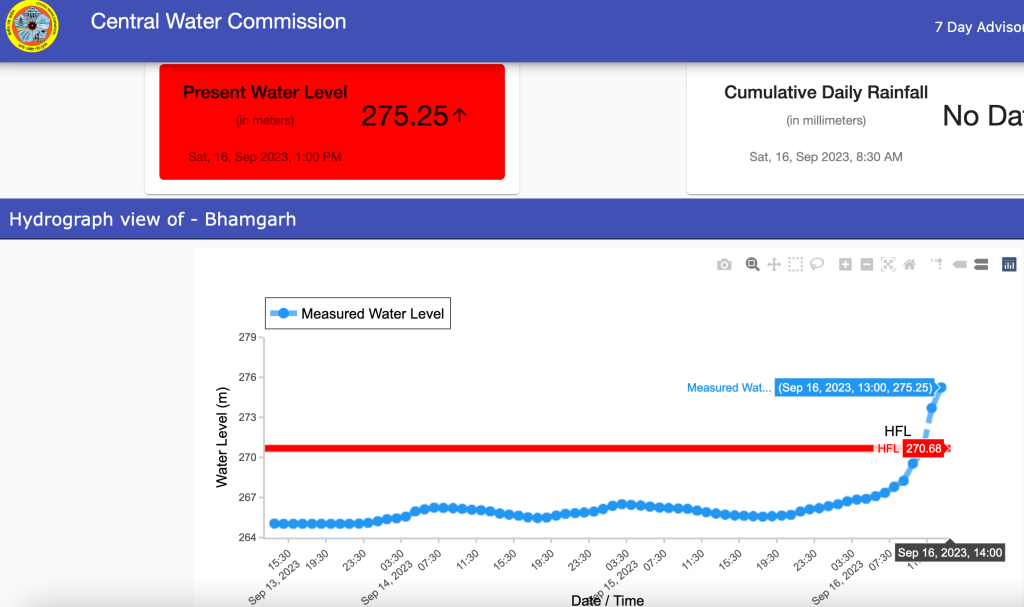

10. Bamgarh in Khadwa dist (Chhota Tawa river) in Khandwa Dist;

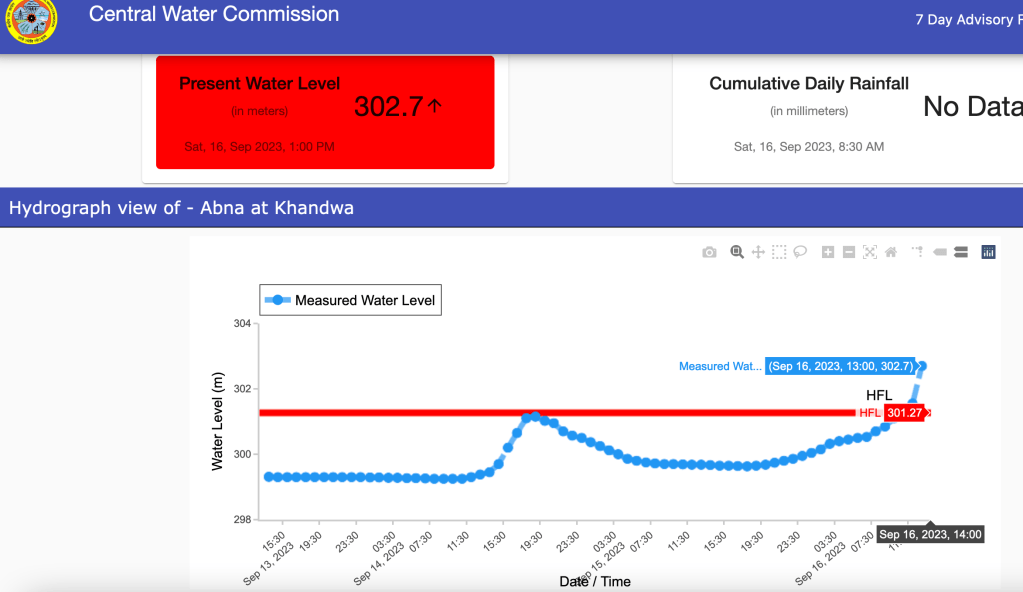

11. Abna at Khandwa;

12. Mandaleshwar in Khargone Dist.

This was yet another reason for the SSP authorities take advance action, but they did not.

Subsequently, more sites crossed HFL:

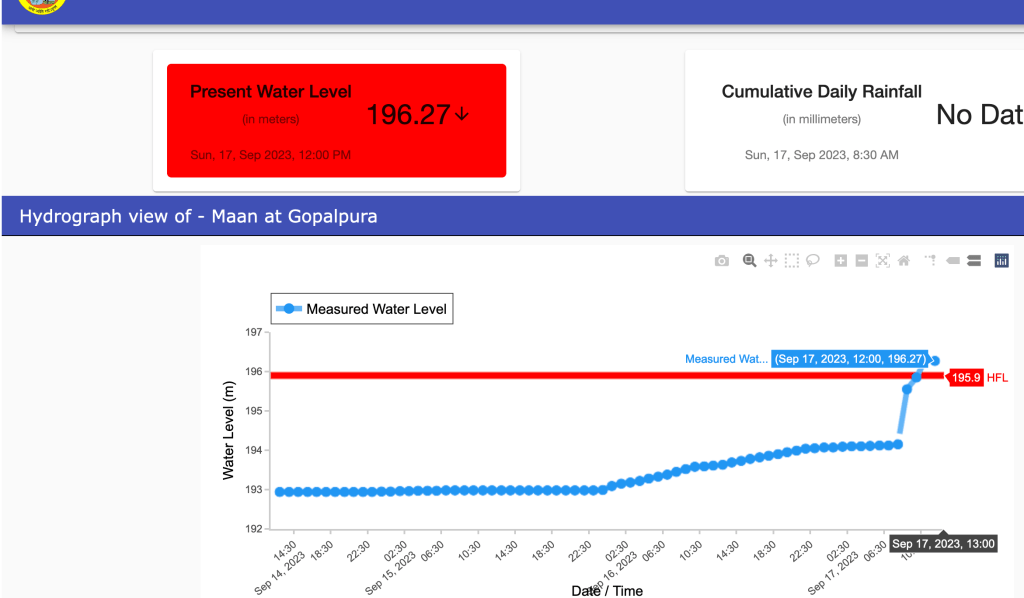

– Maan at Gopalpura in Dhar Dist:

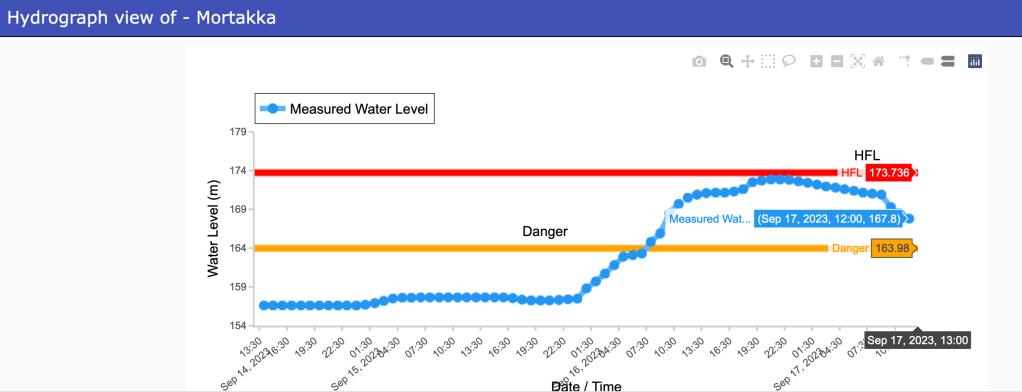

– At Mortakka in Khandwa, where the bridge over Narmada was submerged once again after 2019, water level came within 0.88 m of HFL of 173.736 m:

It is pertinent to note here that such heavy rainfall was already forecast by IMD and even global news channels like BBC even on the night of Sept 15. But even if the SSP and CWC authorities would like to call such forecasts unreliable, the rainfall that had already happened in the Narmada basin since Sept 14, was sufficient actionable information for the SSP authorities to start releasing water from the SSP dam earlier, and avoid the massive disaster they have created.

But the SSP authorities waited for the water level at SSP reach FRL of 138.68 m by 0500 hrs on Sept 17. Once the water level reached FRL, the SSP authorities had no option but. To release all the inflows, which the CWC had already forecast to cross 20000 cumecs, a GROSS under estimate in any case. The inflows into SSP reached 63950 cumecs (22.58 lakh cusecs) by 0100 hrs on Sept 17, 2023.

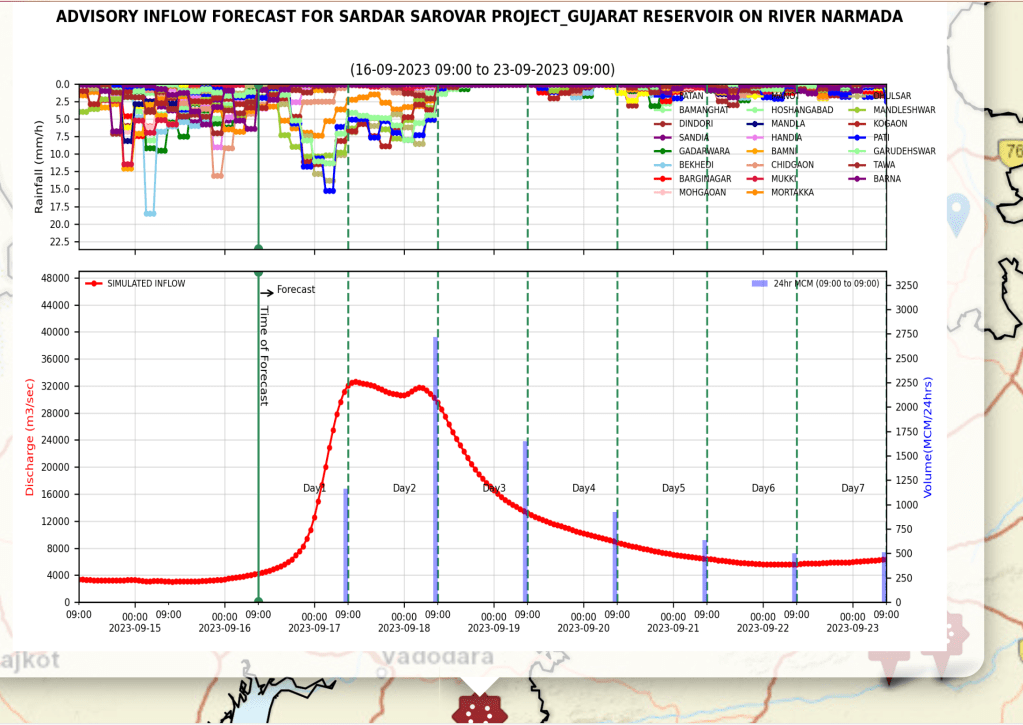

Above screenshot of CWC’s inflow forecast for SSP, done on Sept 16 2023 for Sept 17 2023 and subsequent six days shows how gross under estimation it was against the actual inflow. Actual peak inflow was 63950 cumecs as against the forecast of less than 33000 cumecs. Who will hold CWC accountable for such grossly wrong forecasts?

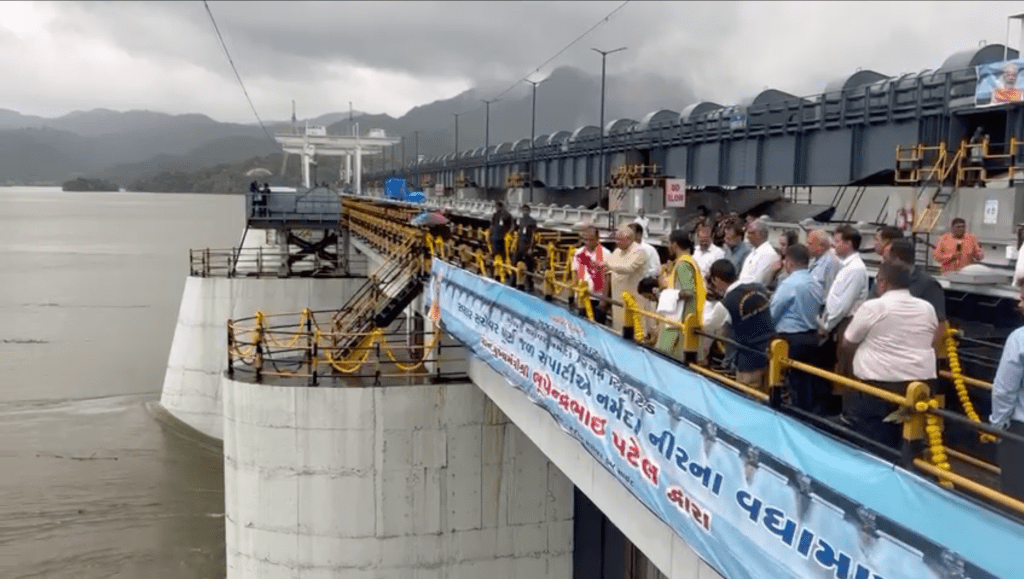

One possible clue as to what the SSP authorities were waiting for was providing by the ceremony conducted at the dam site on the morning of Sept 17 by the Chief Minister, also thanking and wishing happy birthday to Shri Narendra Modi, Prime Minister.

This is not the first time that Gujarat authorities have thus wishes happy birthday to the Prime Minister. They have done that in the past too, almost every year since 2017 [i]. In Sept 2020 [ii], in the process, they created a similar avoidable flood disaster downstream of SSP dam. Gujarat authorities in fact falsely claimed then that they saved Bharuch [iii]! On the contrary, they had violated their own flood management norms [iv]. Some of these can also be read in Gujarati[v]: https://tinyurl.com/y5naz3sp and https://tinyurl.com/y5cmsw76.

The fact is that the SSP authorities got away with unaccountable reservoir operations in Sept 2020 among other occasions and so did the numerous other dam operators across India. This gives another reason why the SSP authorities may not have bothered to take advance action warranted both on the basis of past experience, actionable information and rule curve requirements. They were pretty sure that no one is going to touch them or held accountable. All this also shows how inadequate is the Dam Safety Act the paraphernalia of institutions created around it both at state level and central level. It also shows that how CWC authorities have once again failed in their task and they are also going to not having to answer any questions.

This report can also bee seen in Hindi here. Please click links to see Hindi and English versions of second part of this report.

SANDRP (ht.sandrp@gmail.com)
